Ihr Bedarf geht darüber hinaus?
Menge | |
---|---|
1+ | CHF 4.970 |
10+ | CHF 4.800 |
25+ | CHF 4.640 |
50+ | CHF 4.480 |
100+ | CHF 4.320 |
250+ | CHF 4.150 |
Produktspezifikationen
Produktbeschreibung

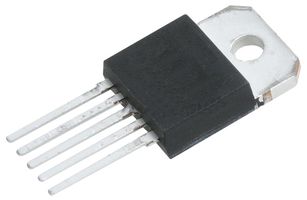

The LM2596T-5.0 is a SIMPLE SWITCHER® low component count Step-down Regulator provides all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. This regulator is available in fixed output voltages of 5V version and requiring a minimum number of external components, this monolithic integrated circuit voltage regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. A standard series of inductors are available from several different manufacturers optimized for use with this regulator. This feature greatly simplifies the design of switch-mode power supplies.
- Requires only 4 external components
- Excellent line and load regulation specifications
- TTL shutdown capability
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
Anwendungen
Power-Management
Technische Spezifikationen
Fest
Buck (Abwärts)
40V
3A
5Pin(s)
5V
-
150kHz
-40°C
-
-
TO-220
150kHz
1Ausgänge
4.5V
3A
TO-220
Durchsteckmontage
5V
-
80%
125°C
-
No SVHC (27-Jun-2018)
-
Technische Dokumente (1)
Gesetzgebung und Umweltschutz
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.Herkunftsland:Malaysia
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.
RoHS
RoHS
Produkt-Konformitätszertifikat
