ALPHA41/3M/SMAM/S/S/19
Stabantenne, 700MHz-960MHz/1.7GHz-2.7GHz, 3.6 VSWR, 2dBi Verstärkung, 50 Ohm, vertikale Polarisation
Ihr Bedarf geht darüber hinaus?
| Menge | |
|---|---|
| 1+ | CHF 15.770 |
| 5+ | CHF 13.440 |
| 10+ | CHF 11.100 |
Produktspezifikationen
Produktbeschreibung

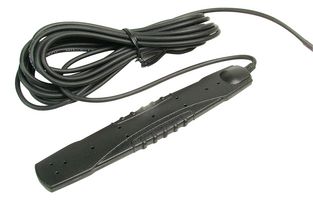

The Alpha 41 is a slim multi-band blade antenna suitable for 2G/3G/4G, WiFi 2.4GHz, Bluetooth and Zigbee. Its stylish design means this antenna will fit discreetly onto most surfaces, whether that is on a work top or side of a wireless modem. It is supplied with an adhesive base, making this antenna perfect for quick and simple installation onto a number of different surface materials such as: metal, glass, wood and plastic. The Alpha 41 achieves a reputable peak gain of 3dBi, helping to improve the short range signal transmission/reception of WiFi modems, Bluetooth gadgets, low power ZigBee sensors or standard GSM/UMTS/LTE signals. The Alpha 41 is supplied, as standard, with a 3m RG174 coaxial cable, terminated with an SMA Male connector.
- Operating Temperature: -20 to +65°C
- Gain: 0 - 2 dBi
- VSWR: <lt/>3.6:1
- Operating Frequencies: 700 - 960MHz and 1.7 - 2.7GHz
- Dimensions (LxWxD): 132x22.5x7mm
Technische Spezifikationen
Stabantenne
2.7GHz
2dBi
50W
Vertikal
No SVHC (21-Jan-2025)
1.7GHz
Klebebefestigung
3.6
50ohm
Alpha
Technische Dokumente (1)
Gesetzgebung und Umweltschutz
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.Herkunftsland:Taiwan
Land, in dem der letzte Fertigungsprozeß ausgeführt wurde.
RoHS
RoHS
Produkt-Konformitätszertifikat
