MK15-C-2
Reed Switch, MK15 Series, SMD, 20 mm, SPST-NO, 10 W, 200 Vac/dc, 0.5 A, 15 to 20 AT

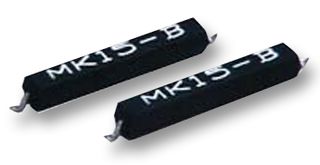

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK15-C-2
Order Code1079485
Product RangeMK15 Series
Technical Datasheet
3,043 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | CHF 2.680 |
| 10+ | CHF 1.980 |
| 25+ | CHF 1.380 |
| 50+ | CHF 1.270 |
| 100+ | CHF 1.240 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
CHF 2.68 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK15-C-2
Order Code1079485
Product RangeMK15 Series
Technical Datasheet
Sensor TypeReed Sensor
Sensing Range Max20mm
Sensing Distance Max20mm
Sensor Mounting-
Supply Current500mA
Operating Temperature Min-40°C
Operating Temperature Max130°C
Product RangeMK15 Series
Product Overview
The MK15 series surface mount Reed Sensor used in ON/OFF control switch, proximity, motion, position detection. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead, high power switch.
- 10W Rated power (maximum)
- 0.5A Switching current maximum
- 150mΩ Contact resistance (maximum)
- 0.05ms Release time
- 1010Ω Insulation resistance
- 1A (SPST) (N.O.), 1B (SPST) (N.C.) Contact form
Applications
Sensing & Instrumentation, Industrial, Security, Medical, Communications & Networking
Technical Specifications
Sensor Type
Reed Sensor
Sensing Distance Max
20mm
Supply Current
500mA
Operating Temperature Max
130°C
Sensing Range Max
20mm
Sensor Mounting
-
Operating Temperature Min
-40°C
Product Range
MK15 Series
Technical Docs (1)
Alternatives for MK15-C-2
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001443
