39531-1004
Terminal Block, Header, 5.08 mm, 4 Ways, 15 A, 300 V, Through Hole Vertical
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | CHF 1.560 |
| 10+ | CHF 1.050 |
| 50+ | CHF 0.795 |
| 100+ | CHF 0.792 |
| 500+ | CHF 0.722 |
| 1000+ | CHF 0.652 |
Product Information
Product Overview

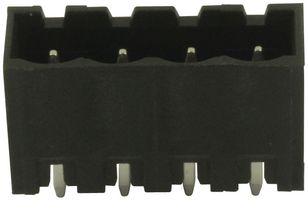

The 39531-1004 is a 4-way 1-row Eurostyle™ vertical PCB header with brass contacts. The 39531 series terminal block is designed to meet the requirements demanded by high-power industrial applications. Eurostyle™ fixed-mount and pluggable terminal blocks offer the most complete lineup of high-power, high-density, customizable terminal blocks available with current ratings up to 115A. Accepts ring and spade wiring terminals and works with standard and #2 Philips screwdriver. The plug mates with 39530 horizontal plug, 39533 vertical plug and most 5.08mm pitch industry standard plugs.
- UL94V-0 flammability rating
- Polarized to mating part
- Ensure a secure mate between plug and header, especially valuable in vibration applications
- No special tools required
Applications
Alternative Energy, Communications & Networking, Consumer Electronics, Industrial
Technical Specifications
Header
4Ways
300V
ESE Eurostyle 39531
5.08mm
15A
Through Hole Vertical
No SVHC (21-Jan-2025)
Alternatives for 39531-1004
7 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
