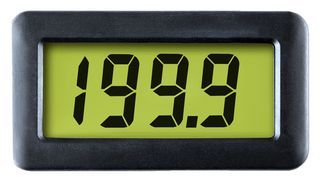

DPM 742-BL
Digital Panel Meter, 3-1/2 Digits, Current Loop Indicator, 4mA to 20mA
20 more incoming. You can reserve stock now
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | CHF 72.200 |
| 5+ | CHF 69.960 |
| 10+ | CHF 68.560 |
Product Information
Product Overview
The DPM 742-BL is a 4 to 20mA Loop Powered LCD Meter with LED backlighting. It features a 3-1/2-digit LCD with 12.7mm digit height and LED backlighting. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument over a very wide range. Decimal points are jumper link selectable. LED backlighting ensures excellent readability under low light conditions. The module has a low drift bandgap reference circuit ensures accurate readings over a wide temperature range. It will suits high and low volume applications. This module is supplied with a plastic mounting bezel. A waterproof seal to IP67/NEMA-4X is achievable, using the optional BEZ 700-IP metal bezel.
- Gives an accurate, zero adjusted indication
- Connection is via screw terminals
- Low voltage drop
- Bandgap reference
- Wide adjustment range
- Auto-polarity on Display
Applications
Industrial, Clock & Timing, Test & Measurement, Automation & Process Control
Technical Specifications
3-1/2
4mA to 20mA
32mm
-
0°C
-
Current Loop Indicator
12.7mm
28.4mm
-
50°C
No SVHC (07-Nov-2024)
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
