B10B-PH-K-S(LF)(SN)

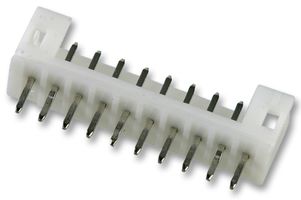

Pin Header, Wire-to-Board, 2 mm, 1 Rows, 10 Contacts, Through Hole Straight, PH
Image is for illustrative purposes only. Please refer to product description.
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part NoB10B-PH-K-S(LF)(SN)
Order Code9491880
Product RangePH
Technical Datasheet
135,847 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 100+ | CHF 0.275 |
| 500+ | CHF 0.245 |
| 1000+ | CHF 0.234 |
| 2500+ | CHF 0.222 |
| 5000+ | CHF 0.209 |
Price for:Each
Minimum: 100
Multiple: 100
CHF 27.50 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part NoB10B-PH-K-S(LF)(SN)
Order Code9491880
Product RangePH
Technical Datasheet
Connector SystemsWire-to-Board
Pitch Spacing2mm
No. of Rows1Rows
No. of Contacts10Contacts
Contact Termination TypeThrough Hole Straight
Product RangePH
Connector ShroudShrouded
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector TypePCB Header
SVHCNo SVHC (21-Jan-2025)
Product Overview
B10B-PH-K-S(LF)(SN) is a PH series top entry, 10 circuit header. This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
- PA 66, UL94V-0, natural (white) material
- 2A AC/DC (AWG #24) current rating
- 100V AC/DC voltage rating
- 1000Mohm min insulation resistance
- 10mohm max contact resistance (initial value)
- Applicable wire of 32 to 24AWG
- Post: brass, copper undercoated, tin-plated (reflow treatment)
- Application PCB board thickness of 0.8 to 1.6mm
- Temperature range from -25 to +85°C
Technical Specifications
Connector Systems
Wire-to-Board
No. of Rows
1Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
Shrouded
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Pitch Spacing
2mm
No. of Contacts
10Contacts
Product Range
PH
Contact Material
Brass
Connector Type
PCB Header
Technical Docs (1)
Alternatives for B10B-PH-K-S(LF)(SN)
3 Products Found
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00055
