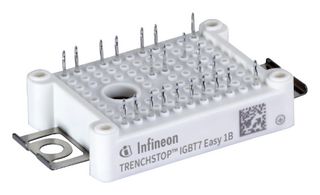

FP25R12W1T7B11BPSA1
IGBT Module, PIM Three Phase Input Rectifier, 25 A, 1.6 V, 175 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFP25R12W1T7B11BPSA1
Order Code3019520
Product RangeEasyPIM TRENCHSTOP
Also Known AsFP25R12W1T7_B11, SP001656938
Technical Datasheet
22 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | CHF 27.010 |
| 5+ | CHF 24.310 |
| 10+ | CHF 24.260 |
Price for:Each
Minimum: 1
Multiple: 1
CHF 27.01 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFP25R12W1T7B11BPSA1
Order Code3019520
Product RangeEasyPIM TRENCHSTOP
Also Known AsFP25R12W1T7_B11, SP001656938
Technical Datasheet
Transistor PolaritySix N Channel
IGBT ConfigurationPIM Three Phase Input Rectifier
Continuous Collector Current25A
DC Collector Current25A
Collector Emitter Saturation Voltage Vce(on)1.6V
Collector Emitter Saturation Voltage1.6V
Power Dissipation Pd-
Power Dissipation-
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature Tj Max175°C
Operating Temperature Max175°C
Transistor Case StyleModule
IGBT TerminationPress Fit
No. of Pins23Pins
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 7 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEasyPIM TRENCHSTOP
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Transistor Polarity
Six N Channel
Continuous Collector Current
25A
Collector Emitter Saturation Voltage Vce(on)
1.6V
Power Dissipation Pd
-
Collector Emitter Voltage V(br)ceo
1.2kV
Operating Temperature Max
175°C
IGBT Termination
Press Fit
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (21-Jan-2025)
IGBT Configuration
PIM Three Phase Input Rectifier
DC Collector Current
25A
Collector Emitter Saturation Voltage
1.6V
Power Dissipation
-
Junction Temperature Tj Max
175°C
Transistor Case Style
Module
No. of Pins
23Pins
IGBT Technology
IGBT 7 [Trench/Field Stop]
Product Range
EasyPIM TRENCHSTOP
