BELDEN 2203ELW.00500

Networking Cable, Euroclass, Premise Horizontal, 4 Pair, Screened, Cat6a, 23 AWG, 500 ft, 152.4 m

BELDEN 2203ELW.00500
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BELDEN BELDEN
Manufacturer Part No:
2203ELW.00500
Order Code:
2924930
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
2203ELW.00500   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (Multicomp Pro RJ45 Adapter)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Screened

:
Cat6a

:
23AWG

:
-

:
500ft

:
152.4m

:
4 Pair

:
Blue

:
Solid

:
LSZH FRNC

:
72V

:
Copper

:
7.9mm

:
Multicomp Pro RJ45 Adapter

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

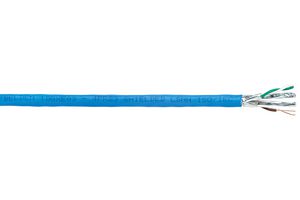

The 2203ELW.00500 from Belden is a 152.4 metre reel of Cat 6A 4-Pair, U/FTP screened Premise Horizontal Cable featuring 23 AWG solid bare copper cores, foam polyolefin insulation, each twisted pair screened with Beldfoil® aluminium foil/polester tape shield, a 26 AWG solid tinned copper drain wire, and a blue LSZH outer sheath. For indoor use - CPR Euroclass Cca.
  • For indoor use - CPR Euroclass Cca
  • Category 6A (500 MHz) 4-pair individually shielded premise horizontal cable
  • 23 AWG solid bare copper cores
  • Foam polyethylene insulation
  • Each pair individually screened with Beldfoil® aluminium foil/polester tape shield
  • 26 AWG solid tinned copper drain wire
  • Blue (RAL 5015) LSZH outer sheath
  • Operating temperature range of -30°C to +60°C
  • Rated 72V, 1.5A max.
  • IEC flammability 60332-1
  • Compliant to ANSI/TIA/EIA 568-B.2-10 (2009); ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

2 In stock Need more?

Standard lead time for this product is 32 weeks.

Order before 19.00 Hrs

With you next business day

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

CHF903.45

Pricing is unavailable. Please contact customer services.

Price for:
Reel of 1
Multiple: 1 Minimum: 1
  • 1+
Quantity Price Your Price


1+ CHF903.45
Promotional price
Contract Price
Web only price
Web only contract price

Quantity Price Your Price



Pricing is unavailable. Please contact customer services.

No longer stocked:: No Longer Manufactured::
Add to Basket Add to Basket Pre-Order
Add
Restricted Item
Enter Your Line Note
Total Price:
Total Price: ( )
Total Price: --
