89126-0103

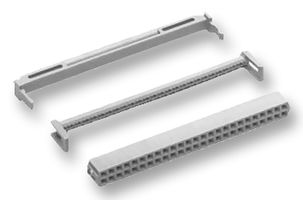

IDC Connector, With Strain Relief, IDC Receptacle, Female, 2.54 mm, 2 Row, 26 Contacts, Cable Mount
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | CHF 2.160 |
| 10+ | CHF 1.460 |
| 100+ | CHF 1.390 |
| 250+ | CHF 1.300 |
| 500+ | CHF 1.290 |
| 1000+ | CHF 1.230 |
Product Information
Product Overview
The 89126-0103 is a 26-way 2-row 0.100 x 0.100-inch IDC Ribbon Cable Socket for 0.050-inch pitch cable with gold-plated phosphor bronze contacts. The 891 series wire-to-board connector comes with a glass filled polyester (PBT) insulator and accommodates 28/26AWG stranded wire. It has military polarization with centerbump and strain relief. Double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors.
- Bumps are designed to prevent premature latch locking during shipment
- Gray color
- UL94V-0 Flammability rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial, Aerospace, Defence, Military, Computers & Computer Peripherals
Notes
Strain relief to be ordered separately.
Technical Specifications
IDC Receptacle
2.54mm
26Contacts
Phosphor Bronze
891 Series
Female
2 Row
Cable Mount
Gold Plated Contacts
No SVHC (07-Nov-2024)
