2N6044
DARLINGTON TRANSISTOR, NPN, 80V, TO-220

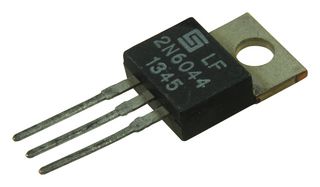

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Delivery in 10 to 14 Business Days (US stock)
Product Information
ManufacturerSOLID STATE
Manufacturer Part No2N6044
Order Code1713233
Technical Datasheet
Collector Emitter Voltage V(br)ceo80V
Collector Emitter Voltage Max80V
Power Dissipation Pd75W
Continuous Collector Current8A
Power Dissipation75W
DC Collector Current8A
Transistor Case StyleTO-220
Transistor MountingThrough Hole
DC Current Gain hFE1000hFE
No. of Pins3Pins
Transition Frequency-
DC Current Gain hFE Min1000hFE
Operating Temperature Max150°C
Product Range-
Qualification-
MSL-
Technical Specifications
Collector Emitter Voltage V(br)ceo
80V
Power Dissipation Pd
75W
Power Dissipation
75W
Transistor Case Style
TO-220
DC Current Gain hFE
1000hFE
Transition Frequency
-
Operating Temperature Max
150°C
Qualification
-
Collector Emitter Voltage Max
80V
Continuous Collector Current
8A
DC Collector Current
8A
Transistor Mounting
Through Hole
No. of Pins
3Pins
DC Current Gain hFE Min
1000hFE
Product Range
-
MSL
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001905
