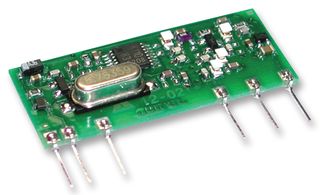

TX 8L50PF06

TX 8L50PF06 is a PLL FM transmitter (2FSK) with external antenna ideal for application when user need to modulate ON-OFF a RF carrier with digital signals. Pin to pin compatible with all OOK AUREL transmitters. Null consumption without modulation signal. In compliance with EN 300 220, EN 301 489 & EN 60950 European Normative standards.

• 868MHz PLL FM Transmitter module with External Antenna
• Compliance with EN 300 220, EN 301 489 & EN 60950 European Normative.
• Supply voltage 5V
• RF output with a characteristic impedance of 50ohm
• RF output power +6dBm
• Square Wave Modulation
• Dimension of 39 x 17.5 x 5mm

Anwendungen

Wireless, Kommunikation & Netzwerke, HF-Kommunikation
