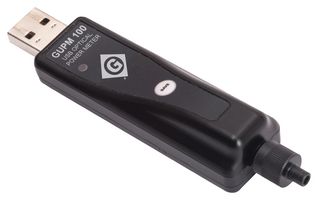

GUPM100-04

GUPM100-04 USB optical power meter is used with the Greenlee Communications software to capture dB loss readings in optical fibre systems. The GUPM100-04 compact size and “plug and play” configuration make it the perfect tool for loss testing at any site; simply plug it into your computer’s USB port and begin testing. Compatible with Greenlee Communications GVIS and Data Manager software, the GUPM100-04 transmits a continuous stream of data, refreshing every second to ensure the most accurate reading possible.

• Convert a laptop, select tablets or Sidekick Plus into a fully-featured Optical Power Meter, plugs into computers and smart devices via USB 2.0
• Create custom reports with GVIS and Data Manager platforms. Add power meter results to image reports or export many readings to a full power meter report
• Ensures pinpoint accuracy in optical measurements (in dB, dBm or Watts).
• 850, 1300, 1310, 1490, 1550, 1610, & 1625nm wavelengths
• Set reference / zero functionality
• Single Mode and Multi Mode testing
• Wavelength Range: 850nm to 1625nm
• Measurement Range: +23 to -45dBm
• Measurement Types: dB (Insertion Loss) / dBm (Absolute Power)
• Resolution: 0.01dB
• Absolute Accuracy: +/- 0.25dB
• Detector Type: Filtered InGaAs
• Tone Identification: 2kHz Incoming Signal - Audible Alert
• Dimensions: 95x19x19mm
