2013595-1
Connecteur modulaire, RJ45 Mâle, 1 x 1 (Port), 8P8C, Cat5e, Montage traversant
Vous en voulez davantage ?
| Quantité | Prix (hors TVA) |
|---|---|
| 1+ | CHF 10.580 |
| 10+ | CHF 9.370 |
| 100+ | CHF 8.180 |
| 250+ | CHF 7.460 |
| 500+ | CHF 6.970 |
Informations produit
Aperçu du produit

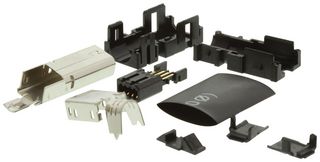

The 2013595-1 is a 8-contact type-1 industrial mini I/O Plug Kit with copper alloy contacts, glass-filled polyamide housing and nickel-plated copper alloy shield. The industrial mini I/O connector system is a small, compact, latching, wire-to-board I/O interface is suitable for the stringent demands of an industrial device. It is one quarter the size of a conventional RJ45 plug and is designed with two points of contact for increased reliability in high vibration environments. The unique latching system protects the plug from pull out during high vibration and accidental bumping. The system is most commonly used as an RJ45 replacement. It consists of 8 individual circuits that accommodate I/O signals.
- 30V Rated voltage
- 0.5A Current rating
- 1500 Cycles durability
- UL94V-0 Flammability rating
Spécifications techniques
Mini E/S
1 x 1 (Port)
8Contact(s)
Cat5e
Montage traversant
1Port(s)
Blindé
Sans aimants
Alliage de cuivre
Mini I/O Cable Assemblies
RJ45 Mâle
8P8C
8Voies
-
Angle Droit
Soudage
Contacts plaqués or
Sans LED
Sans guide de lumière
No SVHC (21-Jan-2025)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :China
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
