PQ357
Oscilloscope PC USB, PicoScope 3000E Series, 4 Analogiques, 100 MHz, 5 GSPS, 3.5 ns
manifestez votre intérêt ici
| Quantité | Prix (hors TVA) |
|---|---|
| 1+ | CHF 1’603.950 |
Informations produit
Aperçu du produit

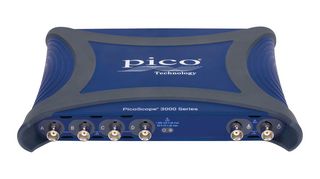

PQ357 is a PicoScope 3415E oscilloscope. It is a USB-C powered PC oscilloscope with 100MHz bandwidth, 5GS/s sampling rate, 2GS ultra-deep capture memory, and 4 analogue channels. Supported by the advanced PicoScope 7 Test and Measurement software, it enables the rapid, cost-effective debugging and performance validation of complex analogue and power electronic designs. It also offers an ideal package for many other applications, including embedded systems design, research, testing, education, service and repair.
- 100MHz bandwidth, 4 analogue channel
- 10-bit resolution (14 bits using enhanced resolution)
- Function/arbitrary waveform generator included
- Compact, portable and USB powered
- 40 serial protocol decoders included as standard
- Segmented memory, persistence and fast waveform updates
- Advanced math, measurements, masks and digital triggering
- PicoScope 7 software for Windows, Mac and Linux with free updates
- Support for LabView, MATLAB and writing your own code
- 5-year warranty
Contenu
Oscilloscope, TA532 1.8m USB-C to USB-C cable, TA534 0.9m USB-A to USB-C cable, PS017 USB-C power supply, with UK, EU, US and AUS plugtops, User's guide.
Spécifications techniques
PicoScope 3000E Series
100MHz
-
Osc PC, Sondes TA375, USB-C vers C TA532, Câble USB-A vers C TA534, Alimentation USB-C PS017, Guide utilisateur
AU, EU, UK, US
4 Analogiques
5GSPS
3.5ns
5 ans
No SVHC (21-Jan-2025)
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Great Britain
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
Certificat de conformité du produit
