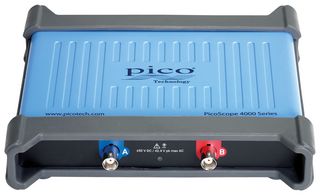

PICOSCOPE 4224A
Oscilloscope PC USB, PicoScope 4000A Series, 2 canaux, 20 MHz, 80 Méch/s, 256 Mpts, 17.5 ns
Vous en voulez davantage ?
| Quantité | Prix (hors TVA) |
|---|---|
| 1+ | CHF 808.470 |
Informations produit
Aperçu du produit
PicoScope® 4000A Series PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio. The PicoScope 4000A Series boasts 12bit hardware resolution (to 16 bits with Resolution Enhancement), 256MS deep capture memory, 20MHz bandwidth with 80MS/s sampling speed, up to 70dB SFDR and a built-in 14bit triggerable signal generator and 80MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160MS/s communications to the host PC. All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.
- 10000 segment waveform buffer
- 14bit resolution AWG
- Low-cost and portable
- SuperSpeed USB 3.0 interface
- Split-screen waveform viewing
- Up to 70dB SFDR
- Advanced digital triggering
- Serial bus decoding
- PicoScope, PicoLog and PicoSDK® software included
Contenu
PicoScope 4000A series 2-channel oscilloscope, Oscilloscope probes, USB 3.0 cable 1.8m, Quick start guide.
Spécifications techniques
PicoScope 4000A Series
20MHz
256 Mpts
Oscilloscope PicoScope 4224A, 2 sondes TA375, Câble USB 3.0 1,8m, Guide de démarrage rapide
-
2 canaux
80Méch/s
17.5ns
5 ans
No SVHC (21-Jan-2025)
