GX-F8A-P

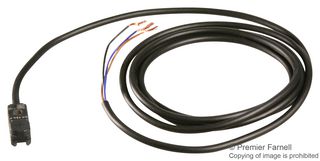

Capteur de proximité inductif, Rectangulaire, Série GX-F, Stable, 2,5 mm, PNP, 12 à 24 V, pré-câblé
Contactez-moi quand le produit sera à nouveau en stock
| Quantité | Prix (hors TVA) |
|---|---|
| 1+ | CHF 48.760 |
| 5+ | CHF 42.660 |
| 10+ | CHF 35.340 |
| 25+ | CHF 31.690 |
| 50+ | CHF 29.250 |
Informations produit
Aperçu du produit
The GX-F8A-P is a rectangular-shaped Inductive Proximity Sensor with PNP open-collector transistor output. It offers normally open output operation, front sensing and 2.5mm maximum sensing range. Thorough adjustment and control of sensing sensitivity greatly reduces individual sensor differences and variations. The work of adjusting sensor positions when using multiple sensors and when sensors have been replaced is much easier. The new integrated construction method used provides shock resistance of 10000m/s² and vibration resistance clears durability tests of between 10 and 500Hz.
- Can be installed with ample space
- Environmental resistance
- Highly resistant to water or oil
- Indicators are easy to see over a wide field of view
- Tightening strength increased with no damage
- Conductor thickness doubled to make wiring much easier
Spécifications techniques
Capteur de proximité inductif
70°C
PNP-NO
-
24V
24VDC
Module
PBT (Polybutylène Térephthalate)
-25°C
To Be Advised
2.1mm
-
2.5mm
12V
12VDC
PNP, NO
Câble
IP68, IP68G
GX-F Series
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Japan
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
