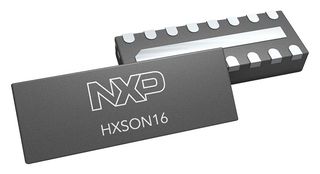

IP4252CZ16-8-TTL,1
Filtre EMI, 8 canaux, protection ESD, MHz, HUSON-16
Vous en voulez davantage ?
| Quantité | Prix (hors TVA) |
|---|---|
| 5+ | CHF 0.318 |
| 10+ | CHF 0.260 |
| 100+ | CHF 0.213 |
| 500+ | CHF 0.185 |
| 1000+ | CHF 0.174 |
Informations produit
Aperçu du produit
The IP4252CZ16-8-TTL is a 12-chanel RC low-pass Filter ESD Protection Diode Array designed to provide filtering of undesired RF signals on the I/O ports of portable communication or computing devices. It incorporates diodes to provide protection to downstream components from electrostatic discharge (ESD) voltages as high as ±30kV. The device is fabricated using monolithic silicon technology and integrates up to 8 resistors and 16 diodes in a 0.4mm pitch. It is suitable for general-purpose electro-magnetic interference (EMI) and radio-frequency interference (RFI) filtering and downstream ESD protection.
- ESD protection to ±30kV contact discharge according to IEC 61000-4-2 far exceeding level 4
- 40Ω Channel series resistance, 12pF at 2.5VDC channel capacitance
Avertissements
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Spécifications techniques
Filtre EMI avec protection ESD
Filtre C-R-C Pi
16Broche(s)
No SVHC (21-Jan-2025)
8 lignes de donnée
HUSON
IP4252 Series
Documents techniques (3)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Thailand
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
RoHS
Certificat de conformité du produit
