TLD55421CHGSHIELDTOBO1

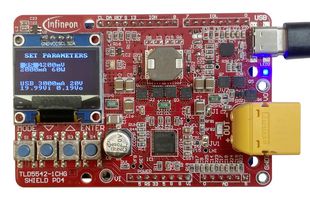

TLD5542-1 charger, LED driver, voltage regulator shield for Arduino. it is a battery charger shield compatible with Arduino UNO. It can charge up to 6 lithium cells at 5A. The shield can be powered either by a USB-PD adapter, or by a standard 12V power supply and it can be configured as battery charger, adjustable voltage regulator and LED driver. A graphical OLED 128 x 64 and 4 pushbuttons are present to set parameters and check the charge status. The TLD5542-1 it’s an LED driver so the charge algorithm is completely implemented in the Arduino therefore it is highly customizable.

• Battery charger shield compatible with Arduino UNO
